New Compact Products

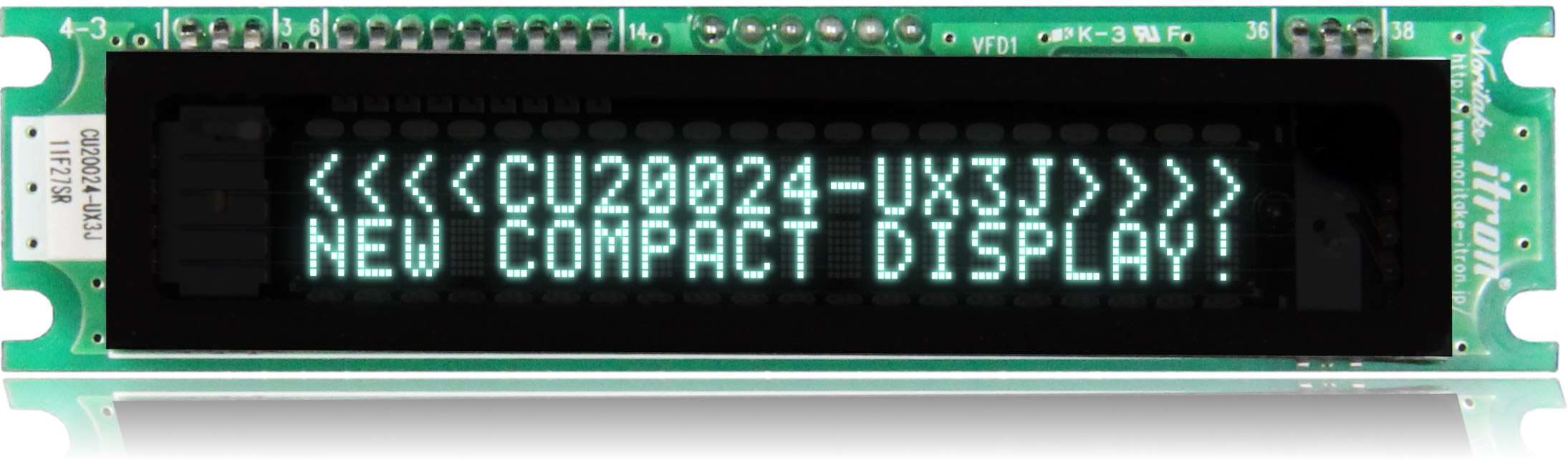

CU20024-UX3J is much smaller in size than a 20x2 LCD, yet can display the same amount of characters.

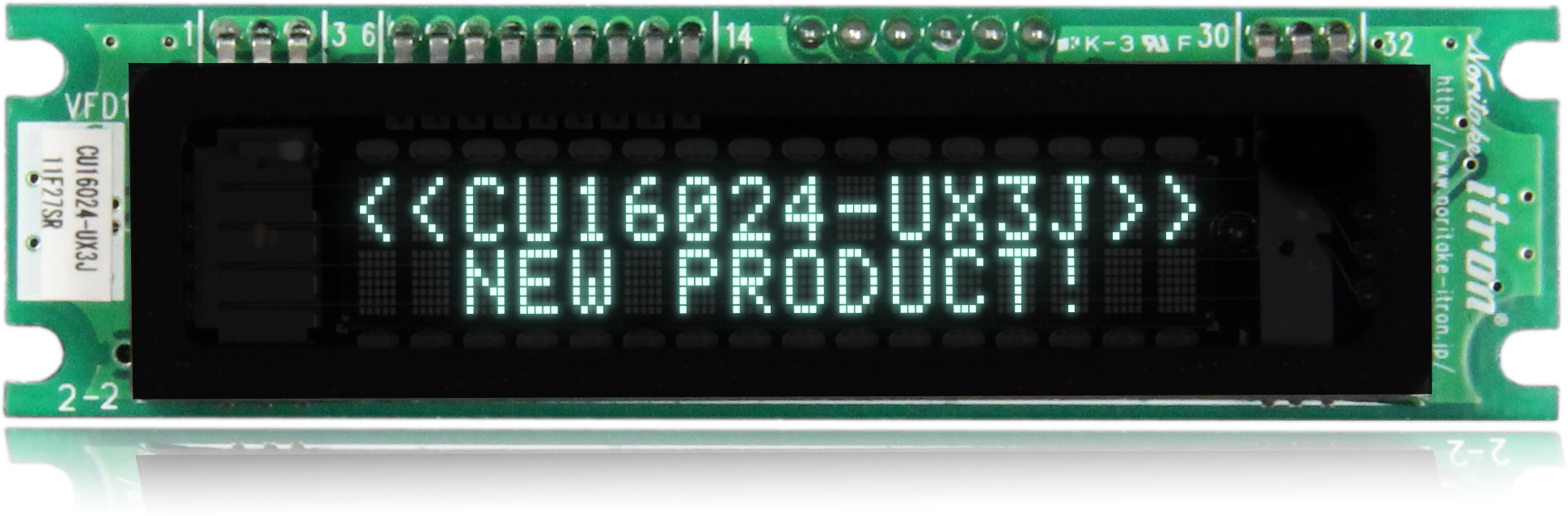

CU16024-UX3J

High Brightness
Character display 16x2 (2 lines, 16 characters)
Fits in 3.5'' x 1'' space
C++ Code Library ►
Download Spec. ►
Buy now ►

High Brightness
Character display 20x2 (2 lines, 20 charcters)
Fits in 4'' x 1'' space
C++ Code Library ►
Download Spec. ►
Buy now ►

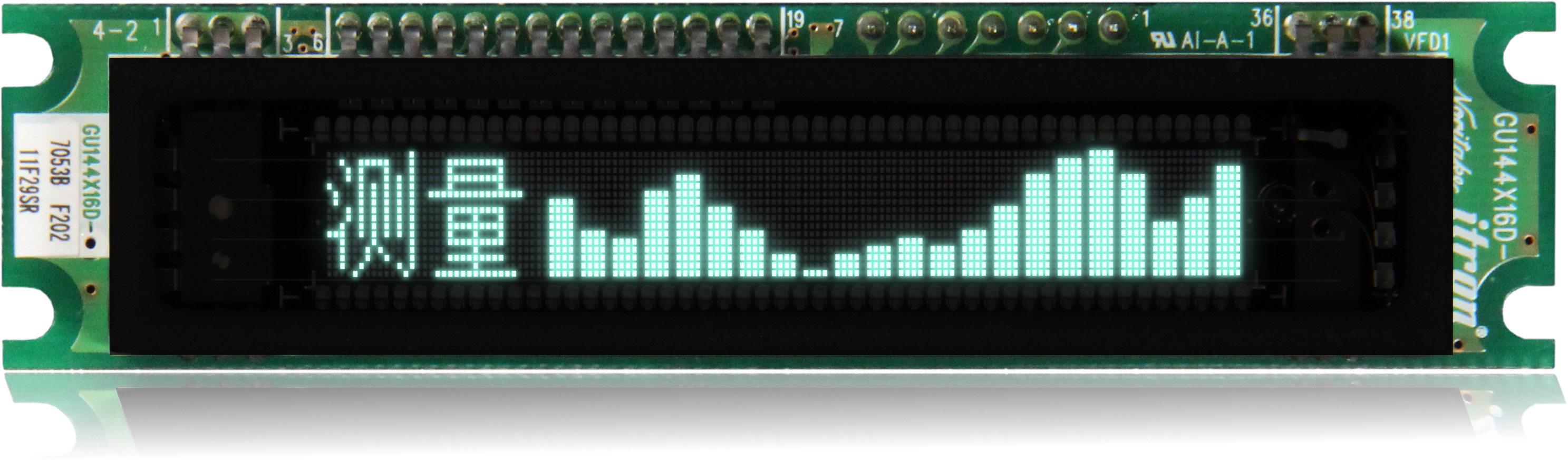

Graphic display capability 144 x 16 dots
Character display 24x2 (Asian font options)
Fits in 4'' x 1'' space
C++ Code Library ►
Download Spec. ►
Buy now ►

Content		CU16024-UX3J	CU20024-UX3J	GU144X16D-7053B
PCB Size		86.6 x 23 mm 3.41 x 0.91 in	98 x 23 mm 3.86 x 0.91 in	98 x 23 mm 3.86 x 0.91 in
Display Area		46.54 x 7.65 mm 1.83 x 0.30 in	58.4 x 7.65 mm 2.30 x 0.30 in	57.45 x 7.85 mm 2.26 x 0.31 in
Dot Pitch		0.43 x 0.53 mm 0.0170 x 0.0207 in		0.40 x 0.50 mm 0.0157 x 0.0197 in
Character Format		5 x 7 dot		Selectable from 6x8, 12x16
Character Size		2.1 x 3.6 mm 0.0815 x 0.141 in		1.85 x 3.35 mm (Min.) 0.0728 x 0.132 in (Min.)
Brightness (Typ.)		1000 cd/m²(Typ.) 2000 cd/m²(Boost Mode)		1000 cd/m² (Typ.)
Interface	Serial	Synchronous Serial		Synchronous, Asynchronous, and SPI
Interface	Parallel	Optional		Not available
Temperature Range		-40 to +85 °C (Operating) -50 to +85 °C (Storage)		-40 to +85 °C (Operating) -40 to +85 °C (Storage)
Function		HD44780 + Brightness control		Noritake GU7000 + additional commands
Code Library		Noritake CU-U		Noritake GU7000
