Display messages from remote location with Network Display Kit. Network Display Kit includes GU512X32H-3900 and LanPort

Display messages from remote location
with the Network Display Kit

Display, scroll, and loop the message from remote location with the Network Display Kit.
The Network Display Kit includes slim and compact Vacuum Fluorescent Display (VFD) with built-in memory and LanPort ethernet adapter.
* stand not included

Display messages from anywhere

Display messages from anywhere

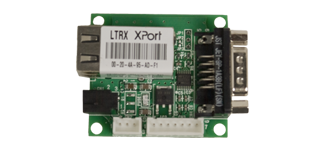

By assigning the LanPort ethernet adapter with the public IP address, the Network Display Kit can receive and display messages from anywhere in the world with internet connection.

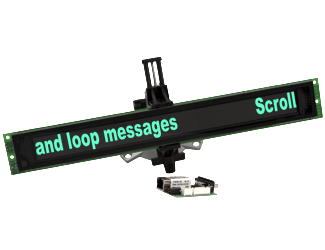

Scroll and loop messages

Scroll and loop messages


Addition to displaying messages, Network Display kit is capable of scrolling and looping the messages.

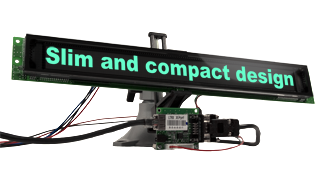

Slim and compact display

Slim and Compact


Slim and compact design, Network Display will fit into spaces that most displays ordinary wouldn't fit.

No programming = no debugging!

No Programming Required


All it takes is a click of a button to display the message or loop the message on the Network Display. Only hard part is figuring out what message to display.

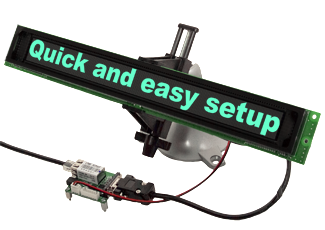

Set up the Network Kit in minutes

Easy Setup


Set up the Network Display Kit in minutes.
1. Connect the ethernet cable
2. Setup the messages
Network Display is configured and ready to go.

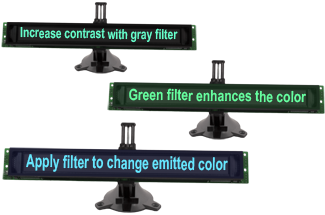

Enhance the display with the color filter

Color Filter


Not only color filters can alter the color of the Vacuum Fluorescent Display (VFD), color filters can increase the contrast ratio and act as a protective shield.
Color filters are available in various sizes and colors.
Learn more ►
Request a quote ►

Technical Specifications

PCB Size


Width:

14.65 in. (372 mm)

Height:

1.93 in. (49 mm)

Depth:

1 in. (25.5 mm)

Display


Width:

12.09 in. (307 mm)

Height:

1.00 in. (25.4 mm)

Dot Width:

0.02 in. (0.4 mm)

Dot Height:

0.02 in. (0.6 mm)

Dot Pitch Width:

0.02 in. (0.6 mm)

Dot Pitch Height:

0.03 in. (0.8 mm)

Luminance


Typical:

800 cd/m²

Minimum:

350 cd/m²

Color:

Green
(Blue Green)

Included in the kit


512x32 3000 Series VFD module

LanPort ethernet adapter

Software

RS232 Cable

Power supply

Instruction Manual

Font Tables


ASCII (Default)

Windows® font table

Font Sizes


5x7, 0.11 x 0.21 in.
(2.8 mm x 5.4 mm)

8x16, 0.18 x 0.50 in.
(4.6 mm x 12.6 mm)

8x16, 0.18 x 0.50 in.
(4.6 mm x 12.6 mm)

16x32, 0.50 x 1.00 in.
(12.6 mm x 25.4 mm)

Visible Range


Typ. Distance:

1.00 ft (0.30 m)

Max. Distance:

20.00 ft (6.10 m)

Interface


Ethernet

RS232 asynchronous serial

Power


5 v and 24 v power supply

Typical:

270 mA

Maximum:

350 mA

Environmental Requirements


Operating temperature: -40° C to +70° C

Storage temperature: -40° C to +85° C

LanPort


PCB size

Width:

1.97 in. (50 mm)

Height:

1.77 in. (45 mm)

3 pin header for power

7 pin header for VFD module

5 v power supply

Windows® Requirements


Windows Vista® or Windows® XP Home or Professional with Service Pack 3 or later and Excel 2003 or later.
