Millimeter to Inches

T-Version Character
Small Size ... Big Value

more to choose from... U-Version Character

T-Version VFD

  • Long-term reliability
  • No Initial Command Required
  • 5V operation
  • Parallel and serial input
  • Built-in test function
  • Temperature Range: -40°C ~ +85°C
  • ASCII, European, Japanese Katakana characters
  • Character Format: 5x7
  • Quick mode / flickerless mode
  • 4 step luminance control
  • High brightness and vivid blue green display
  • Optional Color Optical Filters & Luminance

Module Selection Guide

Vacuum fluorescent display (VFD) module selection guide

Acrylic color filters available

16 Characters Wide

Part Number Number of
Characters		 Character
Format		 Character Size
H x W
(mm)		 Character Size
w/ Underline
H x W
(mm)		 Display
Area
(mm)		 PCB Size
W x H
(mm)		 Power
Supply*
(mA)		 Number
of UDF's		 Weight
(g)		 Replacement for Datasheet
CU16025-TW200A 16 x 2 4.7 x 2.55 - 61.8 x 13.4 96 x 35 360 16 32 - Download CU16025-TW200A specifications
*Typical Current at All Dots On

20 Characters Wide

Part Number Number of
Characters		 Character
Format		 Character Size
H x W
(mm)		 Character Size
w/ Underline
H x W
(mm)		 Display
Area
(mm)		 PCB Size
W x H
(mm)		 Power
Supply*
(mA)		 Number
of UDF's		 Weight
(g)		 Replacement for Datasheet
CU205-KTW221A 20 x 1 5.0 x 3.2 - 80 x 5.3 150 x 32 200 8 80 - Download CU205-KTW221A specifications
CU209-TW200A 20 x 1 9.1 x 6.3 11.2 x 6.3 164.0 x 11.2 214 x 41 360 16 - CU209SCPB-T21A Download CU209-TW200A specifications

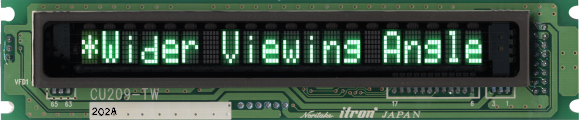

CU209-TW202A 20 x 1 8.85 x 4.3 - 112.6 x 8.85 164 x 34 240 16 70 CU209SCPB-T20A Download CU209-TW202A specifications
CU20025-TW200A 20 x 2 4.7 x 2.65 5.7 x 2.65 78.65 x 12.9 124 x 40 280 16 70 CU20025SCPB-T20A Download CU20025-TW200A specifications
CU20026-TW200A 20 x 2 5.0 x 3.3 TBA 100.2 x 16 155 x 39 290 16 80 CU20026SCPB-T20A Download CU20026-TW200A specifications
CU20026SCPB-T30A 20 x 2 5.0 x 3.5 TBA 96.6 x 14 161 x 34 400 1 80 NEC FC20x2JA-AA/AB Compatible Download CU20026SCPB-T30A specifications
CU20045SCPB-T31A 20 x 4 5.0 x 3.0 - 90.4 x 26 150 x 64 280 16 120 CU20045SCPB-T23A Download CU20045SCPB-T31A specifications
NEW
CU20049-KTW220A		 4 x 20 9.1 x 6.4 - 164.1 x 42.4 222 x 74 1100 16 292 CU20049SCPB-T20A Download CU20049-KTW220A specifications
*Typical Current at All Dots On

40 Characters Wide

Part Number Number of
Characters		 Character
Format		 Character Size
H x W
(mm)		 Character Size
w/ Underline
H x W
(mm)		 Display
Area
(mm)		 PCB Size
W x H
(mm)		 Power
Supply*
(mA)		 Number
of UDF's		 Weight
(g)		 Replacement for Datasheet
CU40026-TW200A 40 x 2 5.05 x 3.3 6.05 x 3.3 188.55 x 16 240 x 43 500 16 - CU40026SCPB-T20A Download CU40026-TW200A specifications
CU40026-TW226A 40 x 2 5.05 x 3.3 6.05 x 3.3 188.55 x 16 240 x 43 500 16 130 - Download CU40026-TW226A specifications
NEW
CU40026-KTW230A		 2 x 40 5.05 x 3.3 6.05 x 3.3 188.55 x 16.0 242 x 52 750 2 172 CU40026SCPB-T30A Download CU40026-KTW230A specifications
NEW
CU406-KTW220A		 1 x 40 5.0 x 3.0 5.9 x 3.0 175 x 6.0 226 x 40 350 16 102 CU406SCPB-T20A Download CU406-KTW220A specifications
CU40066-TW200A 40 x 6 5.0 x 3.5 6.0 x 3.5 188.75 x 46 270 x 110 TBD 16 TBD CU40066SCPB-T20A Download CU40066-TW200A specifications
*Typical Current at All Dots On
