Versatile character display CU-Y Series
2 mm Character Height
NEW CU22042-Y1A / -Y100
22x4 in 16x2 Display Size
All new CU22042-Y1A with 22 characters by 4 lines. Total of 88 characters in 32 character 16x2 display.
Available in CMOS (-Y1A) and RS232 (-Y100) logic signal.
3 mm Character Height
CU24043-Y1A / -Y100
24x4 in 20x2 Display Size
All new CU24043-Y1A with 24 characters by 4 lines. Total of 96 characters in 40 character 20x2 display.
Available in CMOS (-Y1A) and RS232 (-Y100) logic signal.
CU24063-Y1A / -Y100
24x6 in 20x4 Display Size
All new CU24063-Y1A, 24x6 with 24 characters by 6 lines. Total of 144 characters in compact PCB size.
Available in CMOS (-Y1A) and RS232 (-Y100) logic signal.
7 mm Character Height
NEWCU20027-YX1A / -Y100
Brightest VFD module
All new CU20027-YX1A is bright and vibrant emissive display that is intended for applications where brightness was an issue.
CU20027-YX1A is capable of increasing it's brightness up to 400%.
If brightness is what you need, CU20027-YX1A is currently the brightest Vacuum Fluorescent Display (VFD) module from Noritake Itron.
Learn more ►
CU20027-Y1A / -Y100
20x2 with 7mm Character Height

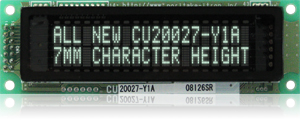

All new CU20027-Y1A, 20x2 with 7mm character height. Same display size as 20x2 with 5mm character height.
Available in CMOS (-Y1A) and RS232 (-Y100) logic signal.
11 mm Character Height
NEW CU200211-Y1A / -Y100
Bold and Bright VFD module

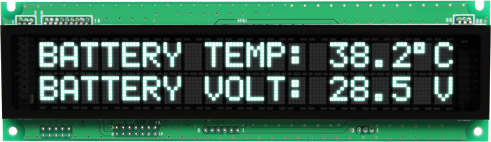

All new CU200211-Y1A, 20x2 with 11mm character height.
Larger character makes better readability from greater distance.
Available in CMOS (-Y1A) and RS232 (-Y100) logic signal.
Y Series Evaluation Kit
Available for all Y Series models
Evaluation comes with VFD module, RS232 cable, power cable, and CD with supporting documents and CUE-Y evaluation software.
Color Filters
Available in various colors and sizes

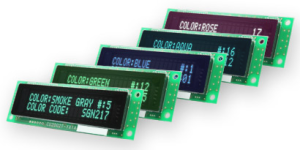

Noritake Itron offers 5 colors (gray, blue, green, aqua, and rose) in 11 of popular VFD module display sizes.
Additional colors and sizes are available by request.
Learn more ►
Request a quote ►
Y-Series Common Features
Versatile Functions
Code Library Available
CU-Y Noritake code libraries allow you to access the core functionality of Noritake VFDs. The code library contains initialization, configuration file, and interface options (parallel and serial) to communicate with the host.
» New Noritake_VFD_CUY code library
CU-Y Noritake code library
1. Covers the basic commands of the CU-Y modules
2. Written in standard C++ for Atmel chips
3. Can be used largely without spec
1. Covers the basic commands of the CU-Y modules
2. Written in standard C++ for Atmel chips
3. Can be used largely without spec
More is better
Y series offers module with same PCB size as 20x2 but has 24 characters by 4 lines or 7 mm character height and 24 characters by 6 lines in 20x4 display size.
Multiple Interfaces
Choose from CMOS logic 8-bit parallel and CMOS logic async / sync serial interfaces/ RS232C level Interface
International Font Tables
Y-Series comes standard with built in international font tables. Font tables include English, UK English, French, German, Danish, Swedish, Italian, Spanish (de facto), Spanish (Castilian), Japanese, Norwegian, Latin America, and Korean.
Descender
Descender is part of a lowercase letter such as g, j, p, and q that extends below the other lowercase letters. Compared to standard ASCII characters, descender gives lowercase fonts the natural feel of the font tables found in word processor program.
5x8
5x7
Compare Y Series VFD modules with other series
Vacuum fluorescent display (VFD) module selection guide ►
Evaluation Kit Available
| Part Number | Character x Row |
Character Format |
Character Size (mm) |
Display Area (mm) |
PCB Size (mm) |
Interface | Power (V/mA) |
Kit | Notes | Datasheet |
|
NEW CU22042-Y1A |
22 x 4 |  |
1.7 x 2.3 | 52.5 x 11.5 | 80.0 x 36.0 |
i80 8-bit Parallel (5V CMOS) Async Serial (5V CMOS) Sync Serial (5V CMOS) |
5V / 180 | Available | CMOS |
|
|
NEW CU20027-YX1A |
20 x 2 | |
2.7 x 7.2 | 73.4 x 15.0 | 116 x 37.0 | 5V / 230 | - | Brightest VFD module |
|
|
|
CU24043-Y1A |
24 x 4 | |
2.1 x 3.3 | 73.4 x 15.0 | 116 x 37.0 | 5V / 220 | Available | CMOS |
|
|
|
CU24063-Y1A |
24 x 6 | |
2.1 x 3.3 | 70.4 x 22.7 | 98 x 47 | 5V / 320 | Available |
|
||
|
CU20027-Y1A |
20 x 2 | |
2.7 x 7.2 | 73.4 x 15.0 | 116 x 37 | 5V / 240 | Available |
|
||
|
NEW CU200211-Y1A |
20 x 2 | |
6.5 x 10.5 | 159.0 x 23.6 | 190 x 55 | 5V / 720 | - |
|
||
|
NEW CU22042-Y100 |
22 x 4 | |
1.7 x 2.3 | 52.5 x 11.5 | 80.0 x 36.0 |
i80 8-bit Parallel (5V CMOS) Async Serial (RS232) |
5V / 180 | Available | RS232 |
|
|
NEW CU20027-YX100 |
20 x 2 | |
2.7 x 7.2 | 73.4 x 15.0 | 116 x 37.0 | 5V / 230 | - | Brightest VFD module |
|
|
|
CU24043-Y100 |
24 x 4 | |
2.1 x 3.3 | 73.4 x 15.0 | 116 x 37.0 | 5V / 220 | Available | RS232 |
|
|
|
CU24063-Y100 |
24 x 6 | |
2.1 x 3.3 | 70.4 x 22.7 | 98 x 47 | 5V / 320 | Available |
|
||
|
CU20027-Y100 |
20 x 2 | |
2.7 x 7.2 | 73.4 x 15.0 | 116 x 37 | 5V / 240 | Available |
|
||
|
NEW CU200211-Y100 |
20 x 2 | |
6.5 x 10.5 | 159.0 x 23.6 | 190 x 55 | 5V / 720 | - |
|
Download Brochure ►
Evaluation Kits Brochure ►
CU-Y Code Library Available ►
Need connectors, cables, and/or color filter?
Let us pre-assemble and inspect the quality for you. We follow the IPC standards and nothing leaves the door unless the quality meets class 2 or higher. Not only you can cutdown on the extra cost associated with subcontracting the secondary operation, it's one less thing you have to worry about.
For connectors, cables, and/or color filter >>
